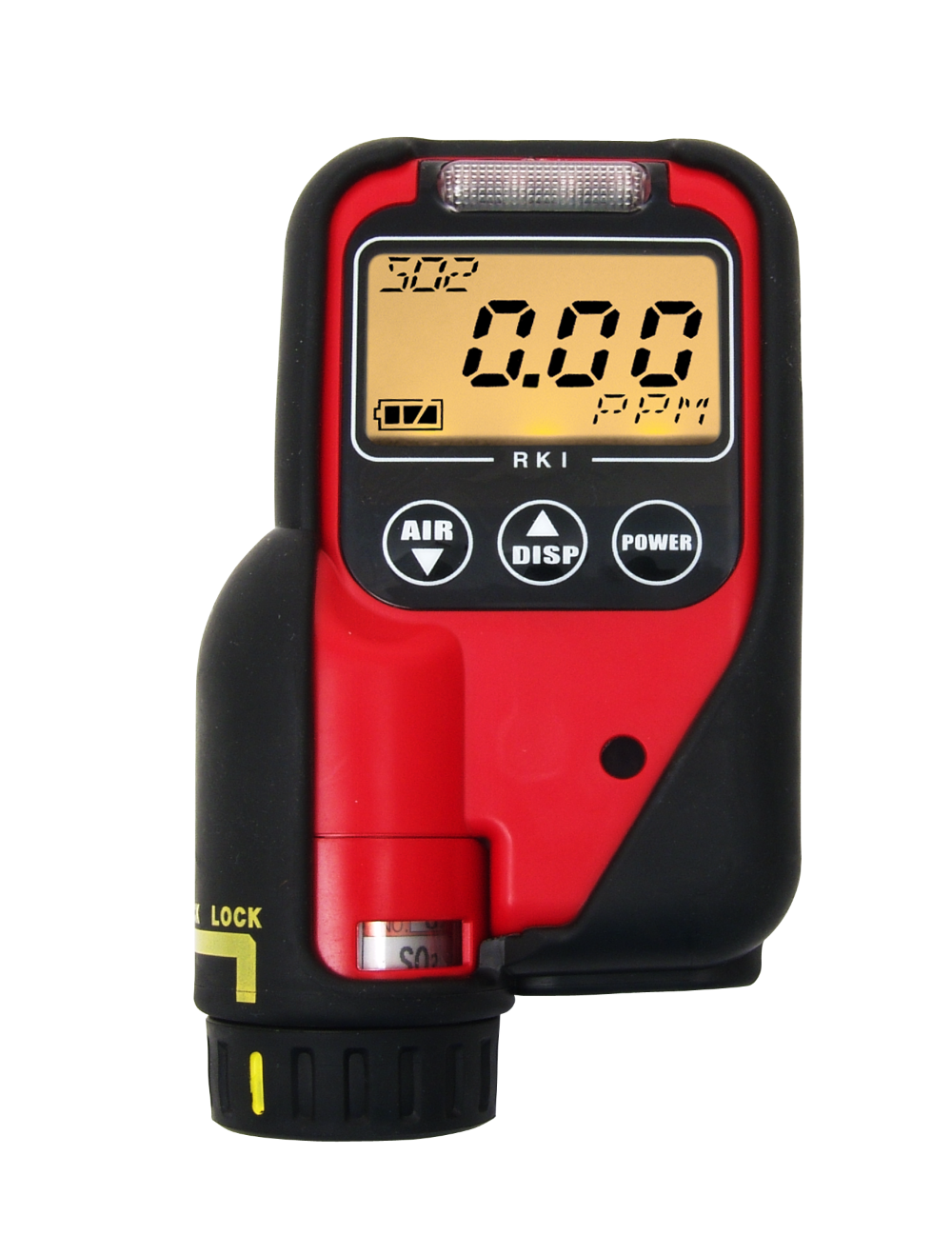

SC-01 Single Toxic Gas Monitor
Description

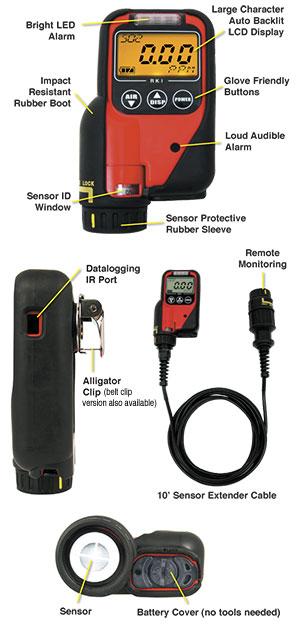

Built around RKIs latest smart sensor technology, the SC-01 is a versatile single toxic gas monitor. The smart sensors are interchangeable, with the SC-01 automatically recognizing any sensor change without any set up or configuration changes. The sensors calibration information also stays with each sensor. Weighing only 7.6 ounces, it has many features which set it apart from the competition. For example, it offers sensors for Ammonia (NH3), Arsine (ASH3), Carbon Monoxide (CO), Chlorine (Cl2), Hydrogen Cyanide (HCN), Hydrogen Sulfide (H2S), Phosphine (PH3), and Sulfur Dioxide (SO2). The SC-01s unique extender cable allows the sensor to be attached to the end of a 10 foot cable for remote monitoring and quick response
Application
- Utilities
- Personal monitoring
- Refineries / petrochemical
- Chemical plants
- Hazmat response
- Water / wastewater treatment
- Semiconductor plants
Specifications:
| Sensor Type | ESM-01 Series |
| Detection Principle | Electrochemical |
| Response Time | Diffusion, optional sensor extender cable |
| Display | Digital LCD, auto backlight during alarm |
| Alarm Operation | Latching and reset function |
| Types of Alarms | 1.Gas alarms: 1st, 2nd, STEL, TWA and OVER 2.Trouble alarms: Sensor connection, low battery, circuit trouble, and calibration error |
| Alarm Indication | 1.Gas alarms: Blinking LED array, intermittent buzzer, blinking gas values, vibration. 2.Trouble alarms: Blinking LED array, intermittent buzzer, display of trouble, vibration. |
| Operating Temp. & Humidity | -10°C to +40°C (14°F to 104°F) Below 95% RH (non-condensing) |
| Continuous Operation | More than 250 hours (at 25°C, no alarm) |
| Power | 2 “AA” Alkaline dry cell batteries |
| Safety Rating | CSA classified, “C/US”, as intrinsically safe. Class I, Division 1, Groups A, B, C, D |
| Dimension & Weight | 2.5” W x 5.2” H x 1.2” D (63 W x 131 H x 31 D mm) 7.6 ounces (215 g) |
| Case Material | Dust & splash resistant. RFI shielded high impact plastic with protective rubber boot |
| Controls | Three buttons: POWER, DISPLAY, AIR |
| Standard Accessories |
|
| Optional Accessories |
|
| Warranty | One year material and workmanship |
